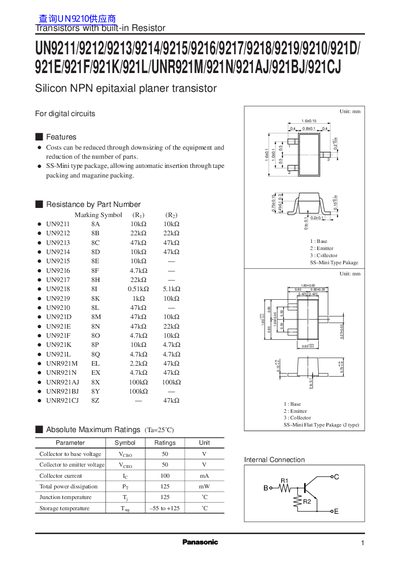

UN9211/9212/9213/9214/9215/9216/9217/9218/9219/9210/921D/921E/921F/921K/921L/UNR921M/921N/921AJ/921BJ/921CJ Silicon NPN epitaxial planer transistor For digital circuits. Costs can be reduced through downsizing of the equipment and reduction of the number of parts. SS-Mini type package, allowing automatic insertion through tape packing and magazine packing.
This document provides technical specifications and electrical characteristics for the Panasonic UN9210 series of Silicon NPN epitaxial planar transistors. These devices feature a built-in resistor designed to reduce equipment costs by downsizing and reducing the number of parts in digital circuits.
The datasheet details absolute maximum ratings, including collector currents up to 100 mA and power dissipation of 125 mW. It also lists specific electrical characteristics such as cutoff current, forward voltage ratio, and transition frequency for various models within the series.
| Transistor Type | Silicon NPN epitaxial planar transistor |
|---|---|
| Total Power Dissipation | 125 mW |
The maximum total power dissipation is 125 mW.
