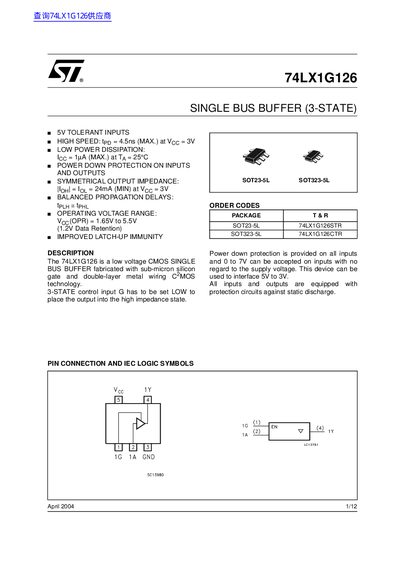

The 74LX1G126 is a low voltage CMOS single bus buffer fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. 3-STATE control input G has to be set LOW to place the output into the high impedance state. Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V. All inputs and outputs are equipped with protection circuits against static discharge.
The 74LX1G126 is a low voltage CMOS single bus buffer fabricated with sub-micron silicon gate and double-layer metal wiring CMOS technology. It features 3-STATE control input G, which must be set LOW to place the output into the high impedance state. The device includes power down protection on inputs and outputs, allowing 0 to 7V to be accepted on inputs regardless of supply voltage, enabling interface between 5V and 3V systems. All inputs and outputs are equipped with protection circuits against static discharge.
| Data Retention Voltage | 1.2V |
|---|---|
| Operating Temperature Range | -55 to 125 °C |
| Package Type | SOT23-5L |
Yes, power down protection is provided on all inputs and outputs.
Yes, it can be used to interface 5V to 3V systems.
