STPS80L60CY is a power Schottky rectifier with very small conduction losses, negligible switching losses, extremely fast switching, low forward voltage drop, and low thermal resistance. It is suitable for CAD computers and servers, and is intended for use in low voltage, high frequency switching power supplies, free wheeling, and polarity protection applications.

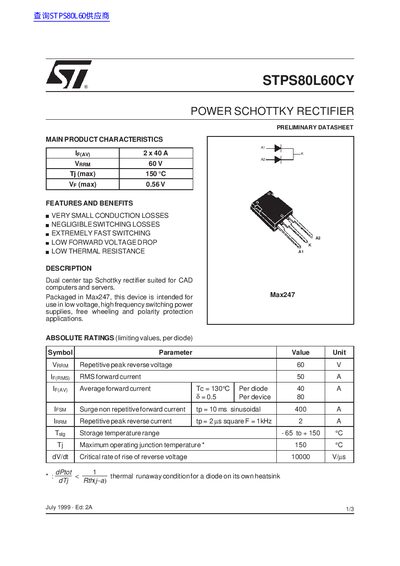

The document is a preliminary datasheet for the STPS80L60CY, a dual center tap Schottky rectifier designed for use in CAD computers and servers. It highlights features such as very small conduction losses, negligible switching losses, extremely fast switching, low forward voltage drop, and low thermal resistance.
| Repetitive peak reverse voltage (VRRM) | 60 V |
|---|---|
| RMS forward current (Ifrms) | 50 A |
| Average forward current per diode (IF(AV)) | 40 A |
| Surge non repetitive forward current (IFSM) | 400 A |
| Maximum operating junction temperature (Tj) | 150 °C |
| Forward voltage drop at Tj=25°C, IF=40A (Ve) | 0.57 V |
| Package type | Max247 |
The storage temperature range is from -65 to +150 °C.
It is a dual center tap Schottky rectifier suited for CAD computers and servers.
The device has a maximum operating junction temperature of 150 °C.
