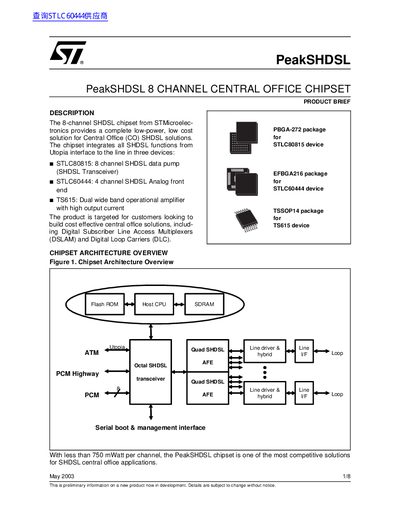

PeakSHDSL is an 8-channel SHDSL chipset from STMicroelectronics that provides a complete low-power, low-cost solution for Central Office (CO) SHDSL solutions. The chipset integrates all SHDSL functions from Utopia interface to the line in three devices: STLC80815: 8 channel SHDSL data pump (SHDSL Transceiver) STLC60444: 4 channel SHDSL Analog front end TS615: Dual wide band operational amplifier with high output current The product is targeted for customers looking to build cost effective central office solutions, including Digital Subscriber Line Access Multiplexers (DSLAM) and Digital Loop Carriers (DLC).
The STMicroelectronics PeakSHDSL chipset offers a complete, low-power, and low-cost solution for Central Office (CO) SHDSL applications. It integrates all SHDSL functions from the Utopia interface to the line across three distinct devices: the STLC80815 (8-channel SHDSL data pump), the STLC60444 (4-channel SHDSL analog front end), and the TS615 (dual wide band operational amplifier). This integration is designed for Digital Subscriber Line Access Multiplexers (DSLAM) and Digital Loop Carriers (DLC).
| Power consumption per channel | <750 mWatt |
|---|---|
| Operating temperature range | -40 to 85°C |
| Symmetrical rate reach | 1552kbps over 5.5 Km |
| Symmetrical rate range | 192 kbps up to 2.3 Mbit/s |
| Output current (TS615) | 420mA |
| Slew Rate (TS615) | 410V/usec |
No, it supports operation with NTR, External PLL or VCXO are not required.
The device supports symmetrical rates up to 2.3 Mbit/s.
The chipset achieves a reach of 5.5 Km over an ETSI 0.4mm cable.
The device operates within an industrial temperature range from -40 °C to +85 °C.
