The STS8NF30L is a low voltage high current N-channel power MOSFET produced by STMicroelectronics. Its maximum voltage is 30V and its minimum on-resistance is 0.018 ohms. It is packaged in SO-8.

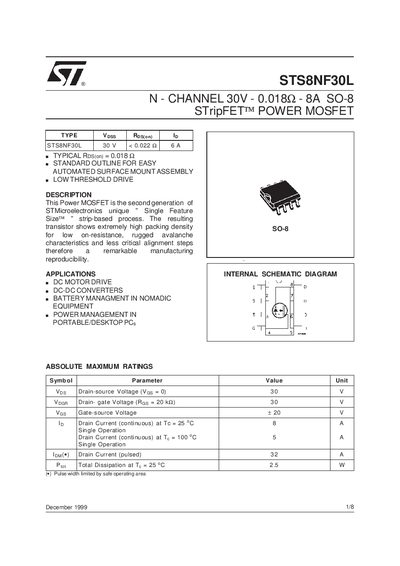

This document is a technical datasheet for the STMicroelectronics STS8NF30L, an N-channel 30V power MOSFET. The device utilizes the company's StripFET™ process to achieve high packing density in an SO-8 surface mount package. It is designed for applications requiring low on-resistance and rugged avalanche characteristics.
| Drain-source Voltage | 30 V |
|---|---|
| Continuous Drain Current at Tj=25°C | 8 A |
| Total Dissipation at Tj=25°C | 2.5 W |
| Package Type | SO-8 |
| Static Drain-source On Resistance (Typ) | 0.018 Ohm |
The maximum operating junction temperature (Tj) is 150°C.
The maximum continuous drain current is 8 A when the temperature is 25 °C.
The typical static drain-source on-resistance is 0.018 Ω when the gate-source voltage is 10 V.
