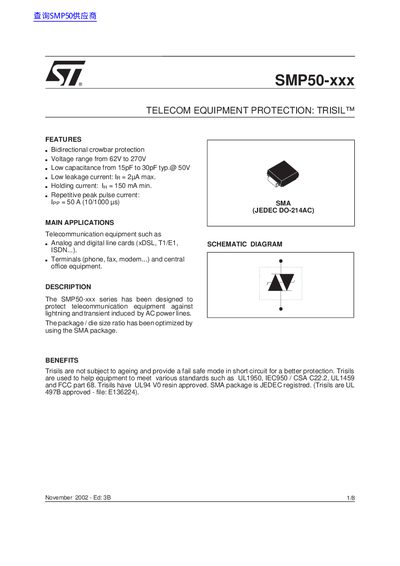

The SMP50-xxx series is a bidirectional crowbar protection device designed to protect telecommunication equipment against lightning and transient induced by AC power lines. It features a voltage range from 62V to 270V, low capacitance from 15pF to 30pF (typ.@ 50V), low leakage current (IR = 2µA max.), holding current (IH = 150mA min.), and repetitive peak pulse current (IPP = 50A).
The SMP50-xxx series is a component designed to protect telecommunication equipment, such as line cards and central office equipment, against lightning and transients induced by AC power lines. These Trisil™ devices utilize the SMA package (JEDEC DO-214AC) optimized for die size ratio.
| Voltage range | 62V to 270V |
|---|---|
| Low capacitance | 15pF to 30pF typ. |
| Leakage current max | 2uA |
| Holding current min | 150 mA |
| Repetitive peak pulse current (10/1000 us) | 50 A |
| Package type | SMA (JEDEC DO-214AC) |
It is used in telecommunication equipment such as analog and digital line cards, terminals (phone, fax, modem), and central office equipment.
The device helps meet various standards including UL1950, IEC950, CSA C22.2, UL1459, and FCC part 68.
