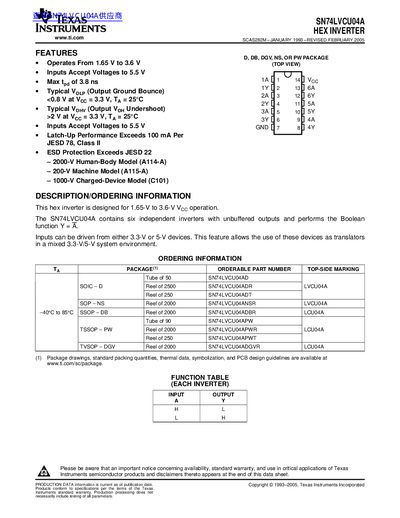

The SN74LVCU04A is a hex inverter designed for 1.65-V to 3.6-V VCC operation. It contains six independent inverters with unbuffered outputs and performs the Boolean function Y = A. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.
The document describes the SN74LVCU04A, a hex inverter designed for 1.65-V to 3.6-V Vcc operation. It contains six independent inverters with unbuffered outputs that perform the Boolean function Y = A.
Key features include inputs capable of accepting voltages up to 5.5 V, allowing use as translators in mixed 3.3-V/5-V systems. The device offers latch-up performance exceeding 100 mA per JESD 78 standards and ESD protection exceeding JESD 22 specifications.
| Supply Voltage Range (Operating) | 1.65 V to 3.6 V |
|---|---|
| Input Voltage Tolerance | to 5.5 V |
| Max Propagation Delay (Typical) | 3.8 ns |
| Latch-Up Performance | Exceeds 100 mA Per JESD 78, Class II |
| Operating Temperature Range | -40°C to 85°C |
The device performs the Boolean function Y = A.
Yes, inputs can accept voltages to 5.5 V, allowing use as translators in a mixed 3.3-V/5-V system environment.
