The CY74FCT162827T and CY74FCT16827T are 20-bit buffers/line drivers that provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. They have power-off disable outputs that allow for live insertion. They are ideally suited for driving high-capacitance loads and low-impedance backplanes.

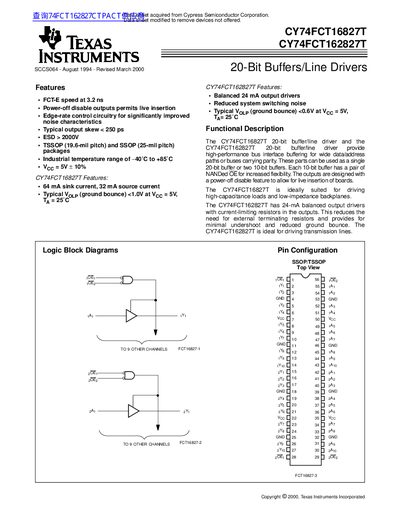

This document provides technical specifications and electrical characteristics for the CY74FCT16827T and CY74FCT162827T 20-bit buffer/line drivers. These devices are designed for high-performance bus interface buffering, capable of operating as a single 20-bit buffer or two 10-bit buffers. They feature power-off disable outputs to permit live insertion of boards and include edge-rate control circuitry for improved noise characteristics.
| Speed | 3.2 ns (Typical) |
|---|---|
| Output Skew | < 250 ps |
| ESD Rating | > 2000V |
| Operating Temperature | -40°C to +85°C |
| Supply Voltage | 5V + 10% |
| Sink Current (CY74FCT16827T) | 64 mA |
| Source Current (CY74FCT16827T) | 32 mA |
| Output Current (CY74FCT162827T) | 24 mA |
| Input HIGH Voltage | 2.0 V |
| Input LOW Voltage | 0.8 V |
| Package Types | TSSOP, SSOP |
Yes, the outputs are designed with a power-off disable feature to allow for live insertion of boards.
The industrial temperature range is -40°C to +85°C.
