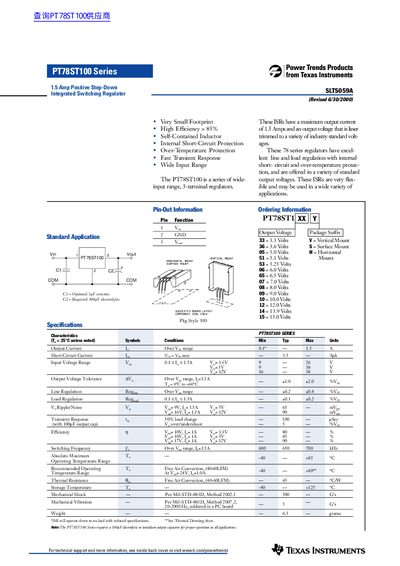

The PT78ST100 is a wide input range, 3-terminal regulator from TI that has a maximum output current of 1.5A and a variety of standard output voltages. It features excellent line and load regulation, internal short-circuit and over-temperature protection, and can be used in a variety of applications.
The PT78ST100 is a series of wide-input range, 3-terminal regulators designed as 1.5 Amp Positive Step-Down Integrated Switching Regulators. These devices feature very small footprints, self-contained inductors, and internal protection against short circuits and over-temperature conditions.
| Output Current | 1.5 A |
|---|---|
| Operating Temperature Range | -40 to +85 °C |
The regulator has a maximum output current of 1.5 Amps.
The device operates with an input voltage range from 9 V to 38 V.
The series requires a 100uF electrolytic or tantalum output capacitor.
