This document describes hyper-bright LED products produced in 1998, which can be used as optical indicators and light pipes. They have the characteristics of very bright luminous intensity and high stability.

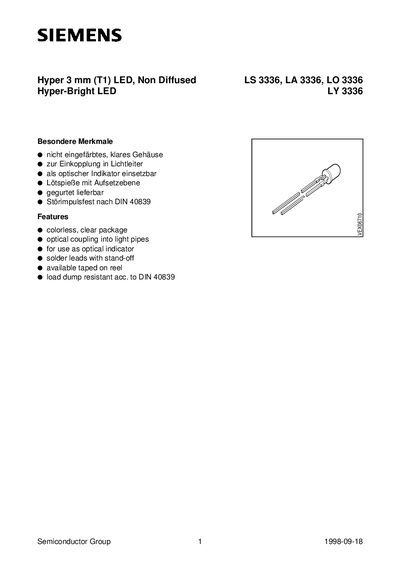

This document is a technical datasheet for the Hyper 3mm (T1) LED series, specifically models LS 3336, LA 3336, LO 3336, and LY 3336. These are non-diffused, high-brightness LEDs designed for optical coupling into light pipes and use as optical indicators. The device features a colorless, clear package and solder leads with a stand-off, available in reel packaging. This manual is written in German.
| Operating temperature range | - 55 ... + 100 ˚C |
|---|---|
| Junction temperature | + 100 ˚C |
| Forward current | 30 20 mA |
| Surge current | 1 0.2 A |
| Reverse voltage | 3V |
| Power dissipation | 80 55 mW |
| Thermal resistance | 500 K/W |
| Approx. weight | 0.15 g |
The operating temperature range is from -55 to +100 degrees Celsius.
The maximum forward current is 30 mA for LS and LO models, and 20 mA for LA and LY models.
