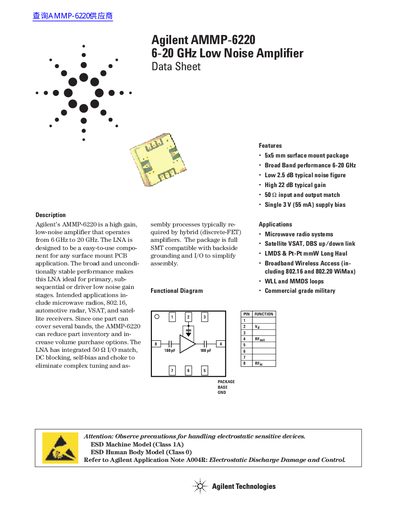

This data sheet provides detailed information about the Agilent AMMP-6220 6-20 GHz low noise amplifier, including product features, applications, and description.
The Agilent AMMP-6220 is a high gain, low-noise amplifier designed for surface mount PCB applications. It operates from 6 GHz to 20 GHz and is intended for use in microwave radio systems, satellite links, and broadband wireless access networks. The device features a 5x5 mm surface mount package and is compatible with standard assembly processes.
| Operating Frequency Range | 6-20 GHz |
|---|---|
| Typical Noise Figure | 2.5 dB |
| Typical Gain | 22 dB |
| Supply Voltage | 3 V |
| Supply Current | 55 mA |
| Input Return Loss | -12 dB |
| Output Return Loss | -16 dB |
| Package Type | 5x5 mm surface mount |
The typical noise figure is 2.5 dB.
The typical gain is 22 dB.
The device requires a single 3 V supply bias.
