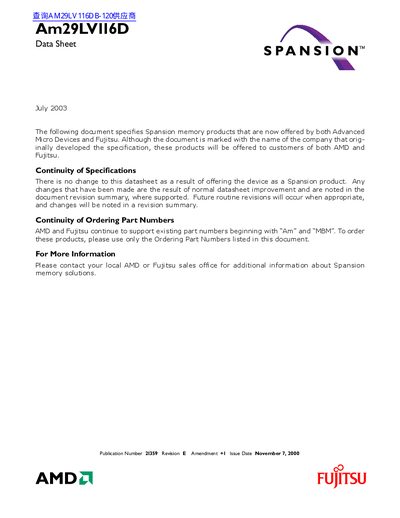

This datasheet states AMD’s current technical specifications regarding the Am29LV116D 16 Megabit (2 M x 8-Bit) CMOS 3.0 Volt-only Boot Serial Flash Memory product.
The Spansion Am29LV116D is a 16 Megabit (2 M x 8-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory manufactured on a 0.23 µm process technology. It is designed for battery-powered applications and offers access times as fast as 70 ns. The device is compatible with and replaces the Am29LV116B device and is offered in a 40-pin TSOP package.
Key features include single power supply operation (2.7 to 3.6 volts), 20-year data retention at 125°C, and ultra-low power consumption with typical standby currents of 200 nA. The memory features a flexible sector architecture with options for one 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirty-one 64 Kbyte sectors. It supports hardware sector protection, embedded algorithms for programming and erasing, and CFI (Common Flash Interface) compliance.
| Capacity | 16 Megabit (2 M x 8-Bit) |
|---|---|
| Voltage Range | 2.7 to 3.6 V |
| Access Time | 70 ns |
| Standby Current | 200 nA |
| Package | 40-pin TSOP |
| Data Retention | 20 years at 125°C |
| Process Technology | 0.23 µm |
The device requires only a single 3.0 volt power supply for both read and write functions.
Yes, it is compatible with and replaces the Am29LV116B device.
The device guarantees a minimum of 1,000,000 write cycles per sector.
