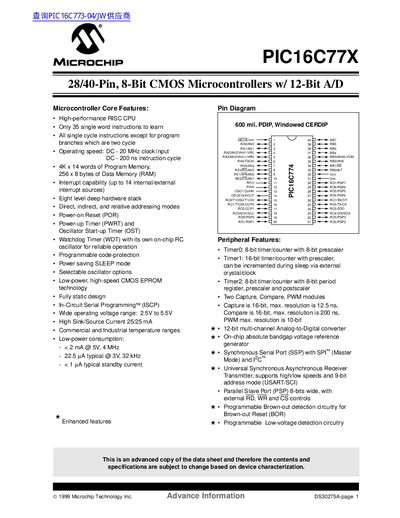

MICROCHIP PIC16C77X 28/40-Pin 8-Bit CMOS Microcontrollers w/ 12-Bit A/D handbook

This data sheet introduces the core features, peripheral features, pin diagram, etc. of the DS30275A microcontroller.

Brand: MICROCHIP
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 200
File format: PDF
File size: 2.8 MB
Published: 12 June, 2012
Updated: 30 September, 2023
Model: PIC16C77X
MD5 checksum: C129256F663C06710A38841F6C4E27AC
PDF: MICROCHIP PIC16C77X 28/40-Pin 8-Bit CMOS Microcontrollers w/ 12-Bit A/D handbook PDF

About this manual

This document is an advanced datasheet for the PIC16C77X family of 8-bit CMOS microcontrollers. It covers two specific devices: the 28-pin PIC16C773 and the 40-pin PIC16C774. The devices feature a high-performance RISC CPU with 35 single-word instructions and operate at speeds up to 20 MHz.

What's inside

Device Overview
Memory Organization
Timer0 Module
Timer1 Module
Timer2 Module
Capture/Compare/PWM Module
Master Synchronous Serial Port
Universal Synchronous Asynchronous Receiver Transmitter
Analog-to-Digital Converter
Electrical Characteristics

Specifications

Operating Speed	DC - 20 MHz clock input
Instruction Cycle	DC - 200 ns
Program Memory	4K x 14 words
Data Memory	256 x 8 bytes
Interrupt Sources	up to 14
Operating Voltage	2.5V to 5.5V
A/D Converter Resolution	12-bit

Frequently asked questions

What are the two devices covered in this datasheet?

The datasheet covers the PIC16C773 (28-pin) and PIC16C774 (40-pin) devices.

Does the 28-pin device have a Parallel Slave Port?

No, the 28-pin devices do not have a Parallel Slave Port implemented.
