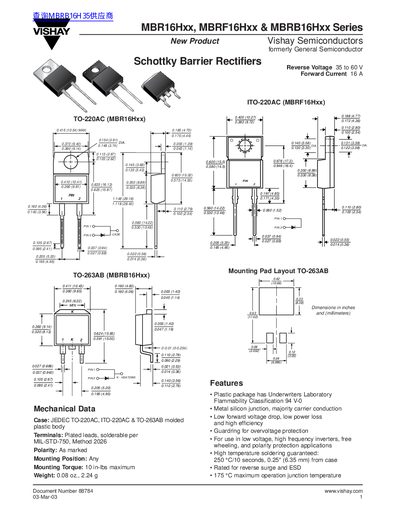

Vishay MBR16Hxx, MBRF16Hxx & MBRB16Hxx Series Schottky Barrier Rectifiers Datasheet

This document provides specifications of MBR16Hxx, MBRFH16Hxx and MBRB16Hxx power modules.

Brand: Vishay
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 72 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 95801A8DC59E2629A7CA6953609E0E97
PDF: Vishay MBR16Hxx, MBRF16Hxx & MBRB16Hxx Series Schottky Barrier Rectifiers Datasheet PDF

About this manual

This document provides a datasheet for the Vishay MBR16Hxx, MBRF16Hxx, and MBRB16Hxx series of Schottky Barrier Rectifiers. The components are designed for low voltage, high frequency inverters, free wheeling, and polarity protection applications, featuring a maximum average forward rectified current of 16 A and reverse voltages ranging from 35 to 60 V.

What's inside

Mechanical Data
Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Ordering Information
Ratings and Characteristic Curves

Specifications

Reverse Voltage Range	35 to 60 V
Maximum operation junction temperature	175 °C
Maximum repetitive peak reverse voltage	35, 45, 50, 60 V

Frequently asked questions

What is the maximum operating junction temperature?

The device is rated for a maximum operation junction temperature of 175 °C.

What is the maximum operating junction temperature for these rectifiers?

The device is rated for a maximum operation junction temperature of 175 °C.

What is the maximum mounting torque allowed for these components?

The maximum mounting torque is 10 in-lbs.

What is the maximum average forward rectified current for this series?

The maximum average forward rectified current is 16 A.
