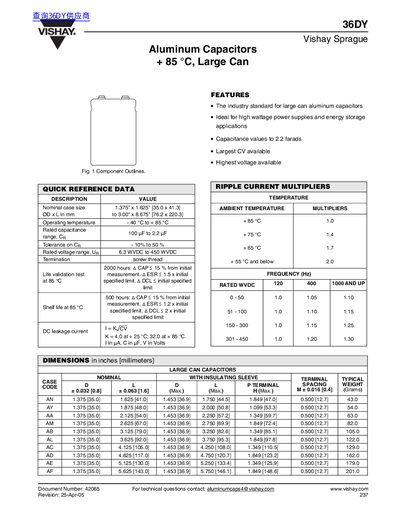

This document describes Vishay Sprague's large can aluminum capacitors, which are ideal for high wattage power supplies and energy storage applications. They have capacitance values up to 2.2 farads, the largest CV available, and the highest voltage available.
This document provides a comprehensive overview of the Vishay Sprague 36DY series of +85°C large can aluminum capacitors. It highlights key features such as high wattage power supply suitability, capacitance values up to 2.2 farads, and voltage ratings ranging from 6.3 WVDC to 450 WVDC.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Rated capacitance range | 100 uF to 2.2 uF |
| Tolerance on Ca | -10% to 50 % |
| Rated voltage range | 6.3 WVDC to 450 WVDC |
The nominal case size for code AN is 1.375” x 1.625”.
Code BY has a nominal case size of 2.000” x 1.875”.
