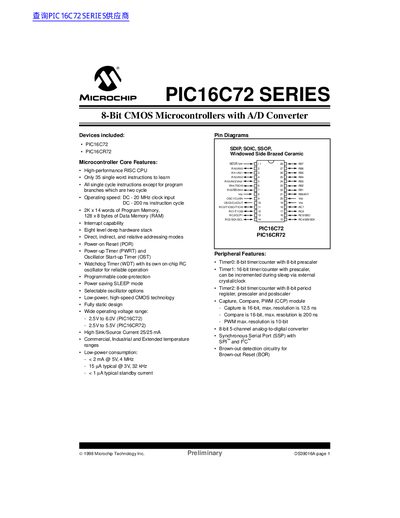

This document provides a detailed introduction to the PIC16CR72/C72 microcontroller, including its core features, peripheral features, pin diagrams, and usage examples.
This document provides device-specific information for the PIC16C72 and PIC16CR72 series, which belong to the Mid-Range family of PICmicro devices. The microcontrollers feature a high-performance RISC CPU with only 35 single-word instructions and an operating speed of up to 20 MHz. Key features include 2K words of program memory, 128 bytes of RAM, and support for multiple oscillator options.
| Operating Frequency | DC - 20 MHz |
|---|---|
| Instruction Cycle | 200 ns |
| Program Memory | 2K x 14 words |
| Data Memory | 128 x 8 bytes |
| Operating Voltage (PIC16C72) | 2.5V to 6.0V |
| Operating Voltage (PIC16CR72) | 2.5V to 5.5V |
| A/D Converter Channels | 5 channels |
The instruction set contains only 35 single word instructions to learn.
The PWM module has a maximum resolution of 10-bit.
Yes, it includes a Watchdog Timer (WDT) with its own on-chip RC oscillator.
