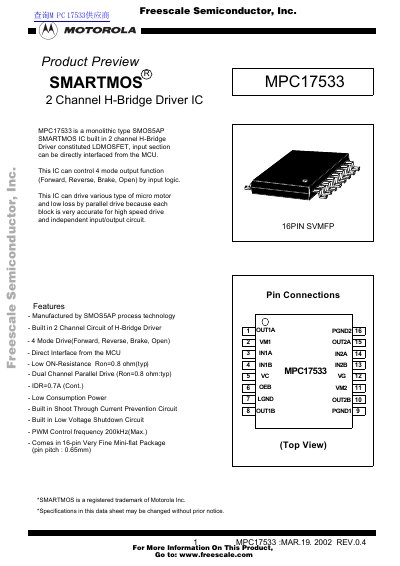

MPC17533 is a monolithic type SMOS5AP SMARTMOS IC built in 2 channel H-Bridge Driver constituted LDMOSFET, input section can be directly interfaced from the MCU. This IC can control 4 mode output function (Forward, Reverse, Brake, Open) by input logic. This IC can drive various type of micro motor and low loss by parallel drive because each block is very accurate for high speed drive and independent input/output circuit.
The document describes the MPC17533, a monolithic SMARTMOS IC designed as a 2-channel H-Bridge Driver. It is built using SMOSSAP process technology and features LDMOSFETs that can be directly interfaced with an MCU. The device supports four output modes: Forward, Reverse, Brake, and Open.
| Driver Output Current (continuous) | 0.7 A |
|---|---|
| Driver Output Current (pulsed) | 14 A |
| Operating Junction Temperature | -55 to 150 degC |
| Power Dissipation | 830 mw |
| PWM Control frequency | 200kHz(Max.) |
| Driver Output ON Resistance (typ) | 0.8 ohm |
The maximum PWM control frequency is 200kHz.
Yes, it has a built-in Shoot Through Current Prevention Circuit.
