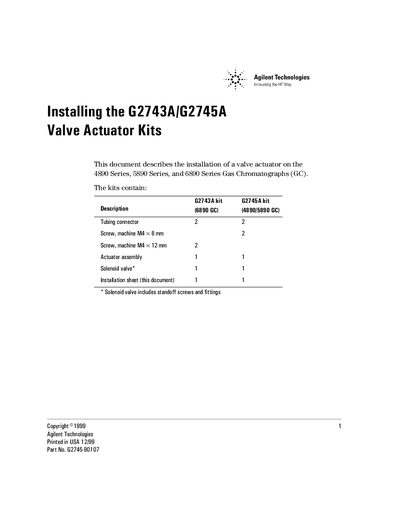

This document describes the installation of a valve actuator on the 4890 Series, 5890 Series, and 6890 Series Gas Chromatographs (GC). The kits contain the necessary tools and components.
This document provides instructions for installing valve actuator kits (G2743A and G2745A) onto Agilent 4890, 5890, and 6890 Series Gas Chromatographs. The kit contents include tubing connectors, machine screws, an actuator assembly, and a solenoid valve with necessary fittings.
| Compatible Gas Chromatographs | 4890 Series, 5890 Series, and 6890 Series |
|---|---|
| Part Number | G2745-90107 |
Required tools include T-10 and T-20 Torx drivers, a flat-blade screwdriver, and various hex keys (3 mm, 7/64-inch, and 4 mm).
Always wear gloves because the insulation is fibrous and can cause irritation; wear protective eyewear and a respirator if the insulation is flaky or crumbly.
