Agilent 8453E UV-Visible Spectrophotometer Setup Poster

About this manual

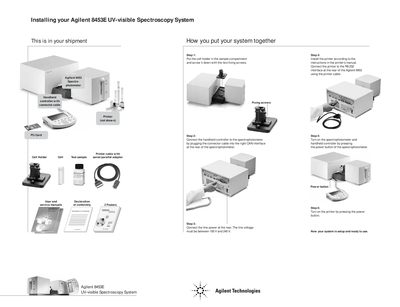

This document serves as a visual guide for assembling and setting up the Agilent 8453E UV-visible Spectroscopy System. It outlines the necessary steps to connect the cell holder, printer, handheld controller, and power supply to the main unit.

The poster details specific connection points, such as the RS 232 interface at the rear of the spectrophotometer for the printer and the CAN interface for the handheld controller. It also specifies that the line voltage must be between 100 V and 240 V before powering on the system.

What's inside

• Installing your Agilent 8453E UV-visible Spectroscopy System
• Put the cell holder in the sample compartment
• Connect the printer to the RS 232 interface
• Connect the handheld controller to the spectrophotometer
• Turn on the spectrophotometer and handheld controller
• Connect the line power

Frequently asked questions

What line voltage range is required to connect the power at the rear of the unit?

The line voltage must be between 100 V and 240 V.
