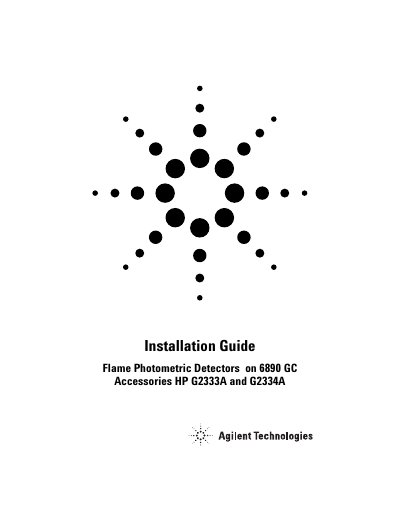

Agilent 6890 Accessories-Installation Guides (G1535-90327 FPD)

About this manual

This document serves as an installation guide for Agilent Technologies Flame Photometric Detectors, specifically models G2333A (Single Wavelength) and G2334A (Dual Wavelength), designed for use with the Agilent 6890 Gas Chromatograph. It covers safety precautions, required tools, and parts lists necessary for the installation process.

What's inside

• Safety Information
• Parts Provided
• Tools Required
• Removing Side Panels
• Installing Single Wavelength FPD
• Installing Dual Wavelength FPD
• Relocating Existing Detectors
• Preparing Detector Location

Specifications

Frequently asked questions

What tools are required for installation?

Required tools include a T-20 Torx screwdriver, open end wrenches, a knife, an electric drill with a 1/8 inch bit (for early models), and a chip removal tool.

Can the detector be separated from its pneumatics module?

It is not necessary or advisable to separate detectors from their pneumatics modules as doing so can create leaks.
