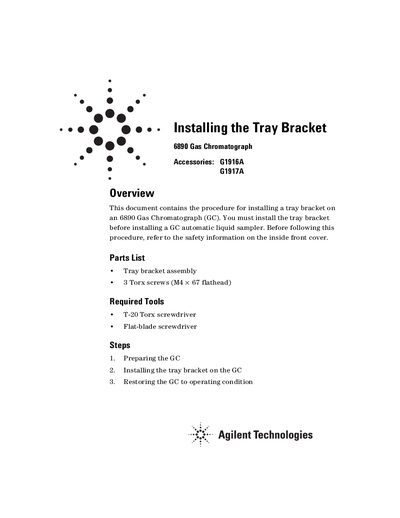

This document describes how to install a tray bracket on a 6890 Gas Chromatograph (GC).
This document describes the installation of a tray bracket assembly onto an Agilent 6890 Gas Chromatograph. This step is required before installing the GO automatic liquid sampler (model 7673 ALS).
The procedure involves preparing the gas chromatograph by unplugging power and removing side panels, unscrewing existing injector mounting posts if present, and removing the inlet cover. The tray bracket is then aligned with the inlet chassis, seated firmly, and secured using three captive screws.
This document describes how to install a tray bracket on an Agilent 6890 Gas Chromatograph before installing an automatic liquid sampler.
You need a T-20 Torx screwdriver and a flat-blade screwdriver to complete the procedure.
