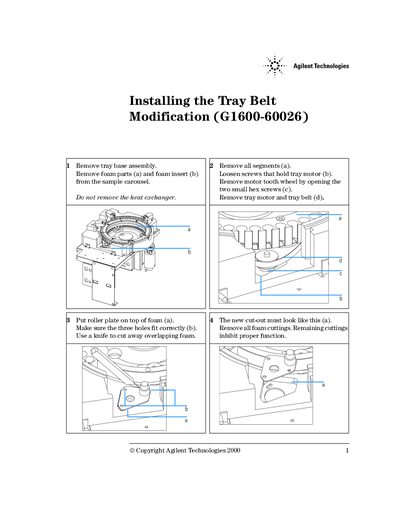

Agilent G1600-60026 Tray Belt Modification Installation Guide

About this manual

The document details the removal of the existing tray base assembly and foam parts from a sample carousel. It instructs users to remove specific segments, loosen screws holding the tray motor, and extract the motor tooth wheel to access the old belt.

After removing the old components, the guide explains how to prepare the mounting area by cutting away overlapping foam to ensure proper fit for the new roller plate. The final steps cover reassembling the motor, installing the bearing sleeve, fitting the new longer tray belt (part number 1500-1040), and adjusting the tension before fully tightening the screws.

What's inside

• Remove tray base assembly
• Remove foam parts
• Loosen screws that hold tray motor
• Remove motor tooth wheel
• Put roller plate on top of foam
• Insert the roller plate
• Install the longer tray belt

Specifications

Frequently asked questions

What is the part number for the new tray belt?

The new tray belt has part number 1500-1040.

Does the modification kit include a roller plate?

Yes, the instructions specify putting the roller plate on top of the foam.
