Agilent 6890 Accessories-Installation Guides (G1532-90337 TCD)

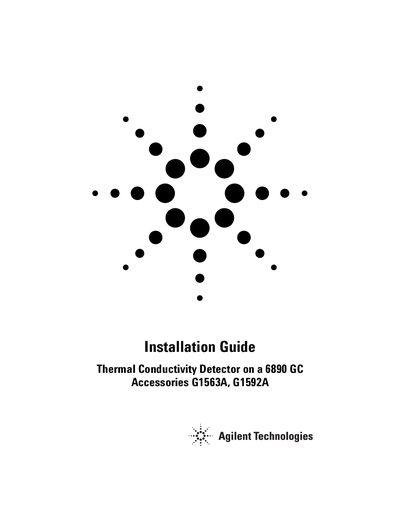

This document is an installation guide for the Thermal Conductivity Detector on a 6890 GC Accessories G1563A, G1592A by Agilent Technologies, Inc. The document provides safety information and warnings, emphasizing the safety regulations to be followed when using the Agilent 6890.

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 28
File format: PDF
File size: 2.8 MB
Published: 08 June, 2012
Updated: 28 September, 2023
Model: 6890 GC
MD5 checksum: 00A109202E1A4F3894986B337DBAAACB
PDF: Agilent 6890 Accessories-Installation Guides (G1532-90337 TCD) PDF

About this manual

This document provides step-by-step instructions for installing a Thermal Conductivity Detector (TCD), specifically models G1563A or G1592A, onto an Agilent 6890 Gas Chromatograph. It covers preparation of the instrument, installation of flow manifolds and regulators, securing the detector, connecting tubing, and restoring operating conditions.

What's inside

Safety Information
Overview
Parts List
Preparing the GC
Installing the flow manifold
Positioning and securing the detector
Connecting the detector
Routing the tubing

Frequently asked questions

Which TCD models are covered in this installation guide?

The guide covers the installation of Thermal Conductivity Detectors (TCD) models G1563A and G1592A.

What tools are required to install a non-EPC thermal conductivity detector?

You need a T-20 Torx screwdriver, diagonal cutters, a small flat-blade screwdriver, and a 7/16-inch wrench.

What is the maximum sound pressure level during normal operation?

The instrument emits a sound pressure less than 68 dB(A) at the operator position.

What safety class and pollution degree does this gas chromatograph meet?

The unit meets Safety Class 1, Transient Overvoltage Category II, and Pollution Degree 2 classifications.
