This document describes the installation steps and required tools for the Agilent 7694 Head- space Sampler interface kit for the Agilent 6890 Gas Chromatograph. It also provides information about the features and characteristics of the product.
The document provides instructions for installing an interface connection between the G1289 Headspace Sampler and the Agilent 6890 Gas Chromatograph. It specifies that the sampler requires a connection to the carrier gas line and the Auxiliary EPC control module, noting that the sampler itself does not contain flow controllers or pressure regulators.

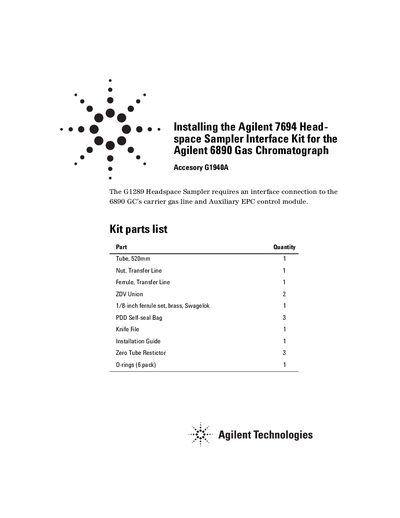

The kit includes a 520mm tube, transfer line parts, two ZDV unions, brass ferrules, self-seal bags, a knife file, and three zero tube restrictors.
You need pliers, the included file, two 7-mm open-end wrenches, and two 7/16-inch open-end wrenches.
The installation places the sampler between the GC inlet flow control and the inlet itself.
