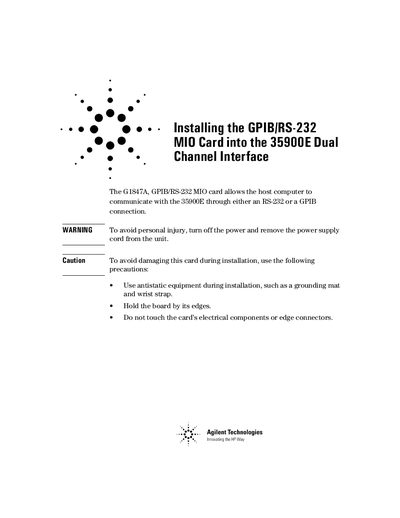

The G1847A is a GPIB/RS-232 MIO card that allows the host computer to communicate with the 35900E through either an RS-232 or a GPIB connection. Precautions should be taken during installation to avoid static electricity and damage to the card's components. The installation steps include turning off the power, removing the power supply cord, removing the existing card or cover, inserting the new card, and securing it with thumb screws.
The document provides instructions for installing the G1847A GPIB/RS-232 MIO card into an Agilent Technologies 35900E Dual Channel Interface. It includes safety warnings regarding power removal and antistatic precautions, as well as step-by-step physical installation procedures involving thumb screws and guide rails.
The guide also explains how to configure the card for either GPIB or RS-232 communication modes by setting switches on the top of the board. Specific tables define the actions for switches 2 through 8 based on the position of switch 1, covering address adjustments, handshake settings, parity options, and baud rates.
| Compatible Card Model | G1847A |
|---|---|
| Communication Modes | RS-232 or a GPIB connection |
Use antistatic equipment such as a grounding mat and wrist strap, hold the board by its edges, and do not touch electrical components or edge connectors.
Set position 1 switch to OFF; switches 2 through 8 adjust the GPIB address.
Set position 1 switch to ON; switches 2 through 8 control handshake, parity, and baud rate settings.
