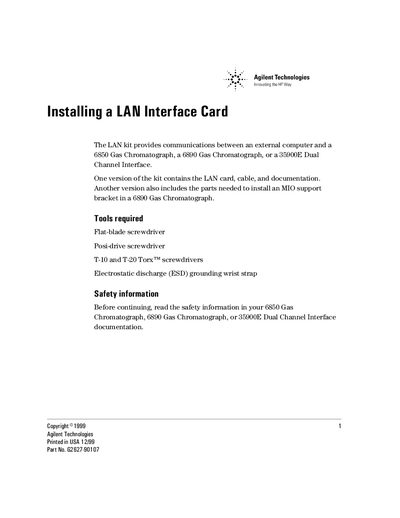

Agilent G2627-90107 LAN Interface Card Installation Guide

About this manual

The document details the installation of a LAN kit that enables communication between an external computer and specific Agilent gas chromatograph models. The kit includes a LAN card, cable, and documentation, with some versions also containing parts for installing an MIO support bracket in a 6890 Gas Chromatograph.

What's inside

• Tools required
• Safety information
• Installing the LAN card
• Installing an MIO support bracket in a 6890 GC
• Restoring power

Frequently asked questions

Which gas chromatographs are compatible with this LAN Interface Card kit?

The kit provides communications between an external computer and a 6850 Gas Chromatograph, a 6890 Gas Chromatograph, or a 35900E Dual Channel Interface.

What tools are required to install the LAN card?

You need a flat-blade screwdriver, Posi-drive screwdriver, T-10 and T-20 Torx screwdrivers, and an electrostatic discharge grounding wrist strap.

What safety steps must be taken before installing the card?

Before proceeding, turn off the main power switch, unplug the power cord, and wear an ESD strap when handling the card.
