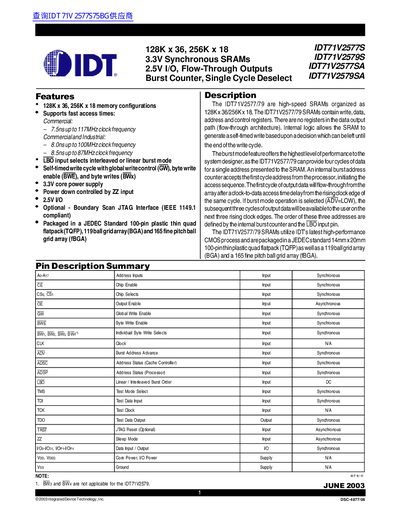

IDT IDT71V2577S IDT71V2579S Synchronous SRAM Datasheet

About this manual

The IDT71V2577S and IDT71V2579S are high-speed synchronous SRAMs available in 128K x 36 and 256K x 18 configurations. They support fast access times up to 117MHz and include burst mode for improved performance. The devices feature flow-through outputs, no output registers, and optional JTAG interface. They are packaged in 100-pin TQFP, 119-BGA, or 165-fBGA formats.

Power is supplied via a 3.3V core and 2.5V I/O, with sleep mode controlled by the ZZ pin. The datasheet details pin functions, timing, and absolute maximum ratings for commercial and industrial temperature ranges.

What's inside

• Features
• Description
• Pin Description Summary
• Pin Definition
• Functional Block Diagram
• Absolute Maximum Ratings
• Recommended DC Operating Conditions
• Capacitance
• Pin Configuration

Specifications

Frequently asked questions

What are the memory configurations available?

The IDT71V2577S and IDT71V2579S are available in 128K x 36 and 256K x 18 configurations.

What is the maximum clock frequency for commercial applications?

The devices support up to 117MHz clock frequency with 7.5ns access time.

What package types are available?

The devices are packaged in 100-pin TQFP, 119-BGA, and 165-fBGA formats.

What is the operating temperature range for industrial applications?

The industrial temperature range is -40°C to +85°C.
