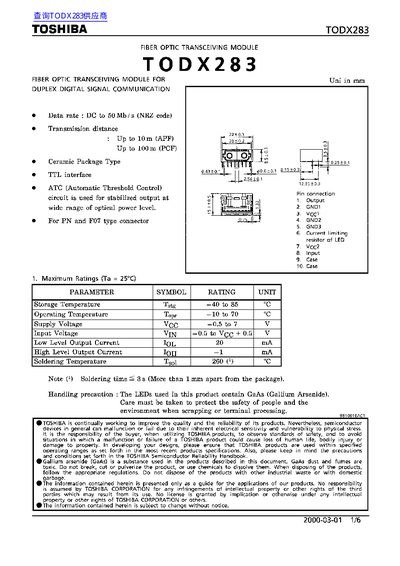

This datasheet details the Toshiba TODX283 fiber optic transceiving module, designed for duplex digital signal communication. It specifies electrical and optical characteristics, including data rates up to 50 Mb/s and transmission distances up to 100 meters with PCF fiber. The module features a TTL interface, automatic threshold control, and ceramic packaging. Precautions cover handling, soldering, environmental conditions, and disposal due to GaAs components. It also includes application circuit diagrams and connector compatibility details.
| Data Rate | DC to 50 Mb/s (NRZ code) |
|---|---|
| Transmission Distance | Up to 10m (APF), Up to 100m (PCF) |
| Supply Voltage | 4.75 to 5.25 V |
| Center Wavelength | 650 nm |
| Maximum Receivable Power (APF) | -6.5 dBm |
| Current Consumption | 100 to 130 mA |
The maximum data rate is DC to 50 Mb/s using NRZ code.
The transmission distance is up to 10 meters for APF fiber and up to 100 meters for PCF fiber.
The recommended supply voltage is 4.75 to 5.25 V.
The center wavelength is 650 nm.
