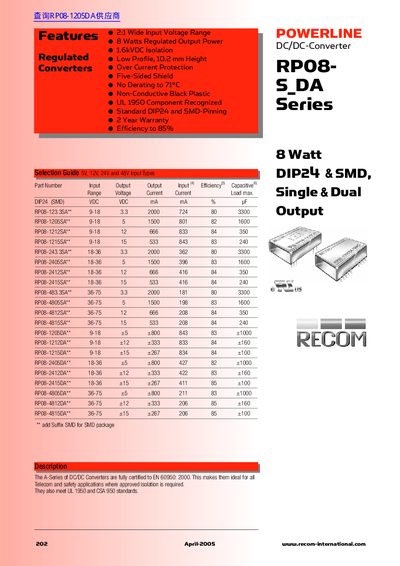

RP08-S_DA series are 8 watt DIP24 & SMD, single & dual output POWERLINE DC/DC-converters. They feature a 2:1 wide input voltage range, 8 watts regulated output power, 1.6kVDC isolation, low profile, 10.2 mm height, over current protection, five-sided shield, no derating to 71°C, non-conductive black plastic, UL 1950 component recognized, standard DIP24 and SMD-pinning, 2 year warranty and efficiency to 85%.
This document provides a selection guide and technical specifications for the Recom POWERLINE RPOS-S DA Series of DC/DC converters. It details various part numbers including DIP24 and SMD packages with input voltages ranging from 9V to 75V and output configurations for single or dual outputs up to 8 Watts.
The datasheet includes comprehensive electrical specifications such as efficiency, regulation, ripple, and thermal characteristics. It also features mechanical drawings with pin connections for both DIP24 and SMD packages, along with safety certifications including UL 1950, EN60950, CSA 950, and compliance with EMC standards.
| Output Power | 8W max. |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Isolation Voltage (DIP) | 1.600VDC min. |
| Operating Frequency | 100kHz min. |
| Weight (DIP) | 16g |
The RPO8 series requires a minimum of 10% loading on the output to maintain specified regulation.
Yes, they are fully certified to EN 60950: 2000 and meet UL 1950 and CSA 950 standards.
