This datasheet provides the datasheet for 15W 2” x 2” single and dual output ECONOLINE DC/DC-Converter REC15- S_DRWB(Z) series, including input voltage range, output voltage accuracy, line voltage regulation, load voltage regulation, output ripple and noise, operating frequency, efficiency, isolation voltage, rated working voltage, isolation capacitance, isolation resistance, short circuit protection, continuous operating temperature range, storage temperature range, relative humidity, case material, package weight, MTBF etc.

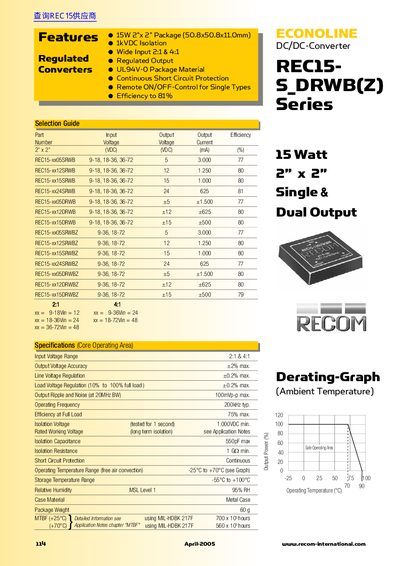

This document is a datasheet for the RECOM REC15-S DRWB(Z) Series of regulated DC/DC converters. The series offers both single and dual output configurations with a total power rating of 15W in a compact e" x 2" (50.8x50.8mm) metal package.
Key features include wide input voltage ranges supporting 2:1 or 4:1 ratios, continuous short circuit protection, remote ON/OFF control for single types, and UL94V-0 rated package material. The converters operate with an efficiency up to 81% and provide 1kVDC isolation.
| Total Output Power | 15W |
|---|---|
| Isolation Voltage | 1kVDC |
| Operating Frequency | 200kHz typ. |
| Efficiency at Full Load | 75% max. |
| Isolation Capacitance | 550pF max |
| Operating Temperature Range | -25°C to +70°C |
Yes, the converters feature continuous short circuit protection.
The output ripple and noise is a maximum of 100mVp-p when measured at 20MHz bandwidth.
The unit operates in a temperature range from -25°C to +70°C when using free air convection.
The device has a minimum isolation resistance of 1 GΩ.
