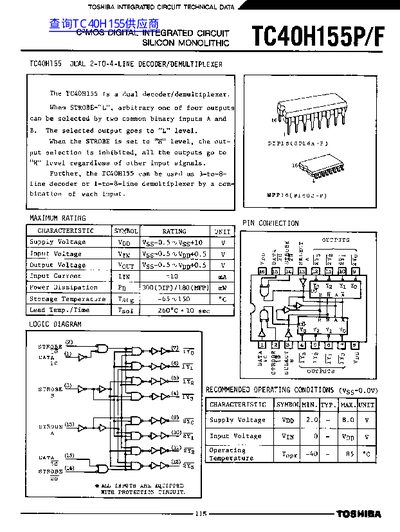

This document is a technical datasheet for the Toshiba TC40H155P/F, a silicon monolithic digital integrated circuit. The device functions as a dual 2-to-4-line decoder or demultiplexer when the STROBE input is low, selecting one of four outputs based on binary inputs A and B. It can also operate as a 3-to-8-line decoder or 1-to-8-line demultiplexer using specific input combinations.
| Supply Voltage (Vpp) | 2.0 - 8.0 V |
|---|---|
| Operating Temperature Range | -40 to +85 °C |
| Power Dissipation (DIP) | 300 mW |
| Storage Temperature | -65 to +150 °C |
It acts as a dual 2-to-4-line decoder/demultiplexer or can be used as a 3-to-8-line decoder.
When STROBE is low, one output is selected; when high, all outputs go to 'H' level.
Yes, the maximum input current (TIN) is 10 mA.
