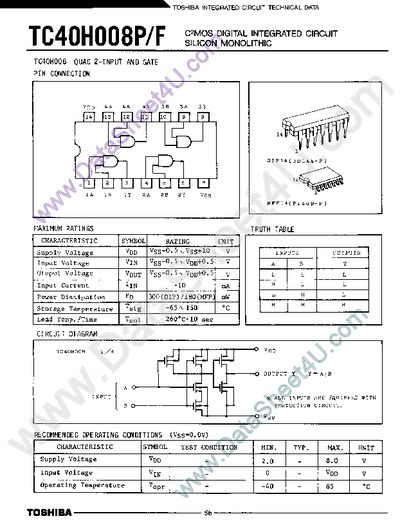

This document is a technical datasheet for the Toshiba TC40HOO8P/F, a C2MOS digital integrated circuit functioning as a quad 2-input AND gate. It provides maximum ratings, recommended operating conditions, and detailed electrical specifications including output voltage levels and currents at various temperatures.
| Product Type | Quad 2-Input AND Gate |
|---|---|
| Technology | C2MOS |
| Supply Voltage (VDD) | 2.0 - 3.0 V |
| Operating Temperature | -40 to 85 °C |
| Power Dissipation (DIP) | 300 mW |
| Output Rise Time (Circuit 1) | 5 to 20 ns |
Each gate has two inputs labeled A and B.
