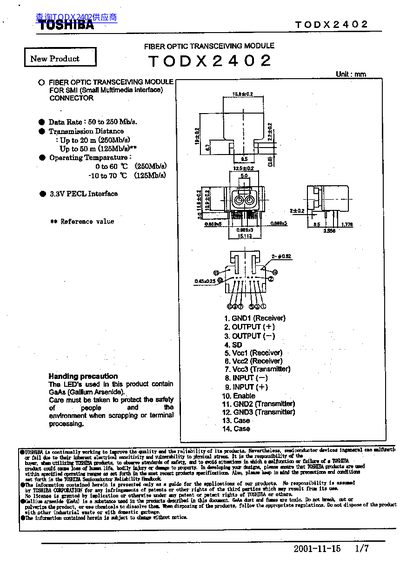

This datasheet details the Toshiba TODX2402 fiber optic transceiver module designed for Small Multimedia Interface (SMI). It supports data rates from 50 to 250 Mb/s and transmission distances up to 50 meters at 125 Mb/s. The module operates on a 3.3V PECL interface and includes electrical and optical specifications, application circuits, and handling precautions. It also covers soldering and electrostatic discharge (ESD) precautions for safe installation and use.
| Data Rate | 50 to 250 Mb/s |
|---|---|
| Transmission Distance | Up to 20 m (250Mb/s), Up to 50 m (125Mb/s) |
| Operating Temperature (250Mb/s) | 0 to 60°C |
| Supply Voltage | 3.0 to 3.6 V |
| Center Wavelength | 650 nm |
| Output Current | 50 mA |
| Current Consumption (Transmit) | 40 to 56 mA |
| Current Consumption (Receive) | 35 to 45 mA |
The maximum data rate is 250 Mb/s.
The transmission distance at 125 Mb/s is up to 50 meters.
The operating temperature range is 0 to 60°C.
The center wavelength is 650 nm.
