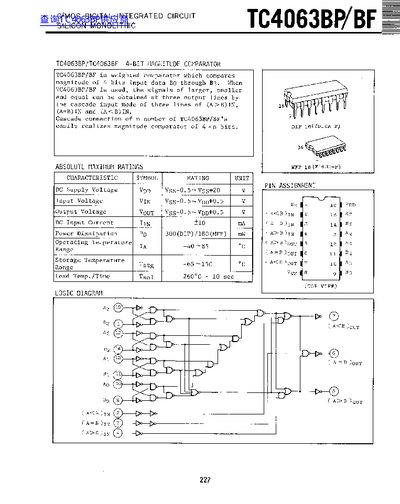

This document is a technical datasheet for the Toshiba TC4063BP and TC4063BF integrated circuits. These devices are described as weighted comparators that compare the magnitude of 4 bits of input data (B3 through B0). The components feature three output lines indicating whether one set of inputs is larger, smaller, or equal to another.
| Number of Inputs | 4 bits |
|---|---|
| Supply Voltage Range (DC) | -0.5 to +20 V |
| Operating Temperature Range | -40 ~ 85 °C |
| Storage Temperature Range | -65 ~ 150 °C |
It compares the magnitude of four bits of input data.
