M54/74HCT86 is a high-performance CMOS quad exclusive or gate with input buffers and output buffers. The input has electrostatic protection circuits and overvoltage protection circuits. The output has a 10 LSTTL load capacity.

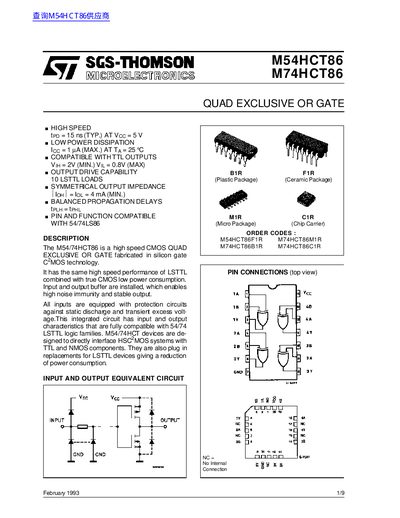

This document is a technical datasheet for the SGS-THOMSON M54/M74HCT86 series of integrated circuits. The device is described as a high-speed CMOS Quad Exclusive OR gate fabricated in silicon gate technology, offering low power consumption and compatibility with 54/74LS86 TTL logic families.
The datasheet provides comprehensive electrical specifications including absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics for various temperature ranges, and pin descriptions. It also includes truth tables, equivalent circuit diagrams, switching characteristic test circuits, and mechanical data for multiple package types such as Plastic DIP14, Ceramic DIP14/16, SO14, and PLCC20.
| Output Drive Capability | 10 LSTTL Loads |
|---|---|
| Supply Voltage Range | 4.5 to 5.5 V |
| Operating Temperature (M74HC Series) | -40 to +85 °C |
| Power Dissipation | 500 mW |
It functions as a high speed CMOS QUAD EXCLUSIVE OR GATE.
Yes, it is designed to be compatible with 54/74LS86 (Micro Package) and can directly interface HSC*MOS systems with TTL components.
