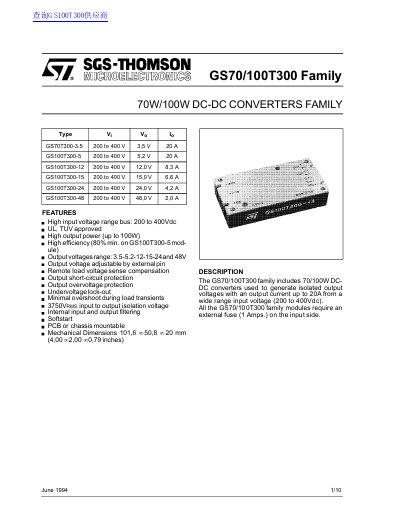

The GS70/100T300 family is a family of 70/100W DC-DC converters that can generate isolated output voltages with an output current of up to 20A from a wide range of input voltages (200 to 400Vdc)
The Philips GS70/100T300 family includes 70W and 100W DC-DC converters designed to generate isolated output voltages from a wide input voltage range of 200 to 400Vdc. These modules support output currents up to 20A and feature high efficiency, with a minimum of 80% for the GS100T300-5 module. The family offers multiple standard output voltages including 3.5V, 5.2V, 12V, 15V, 24V, and 48V.
| Input Voltage Range | 200 to 400 Vdc |
|---|---|
| Output Power | 70W or 100W |
| Output Current | up to 20A |
| Efficiency | 80% min. |
| Isolation Voltage | 3750V RMS |
| Switching Frequency | 150 kHz |
| Operating Case Temperature | 0 to +70 °C |
| Mechanical Dimensions | 101.6 x 50.8 x 20 mm |
The converters operate with an unregulated input voltage in the range of 200 to 400Vdc.
Yes, all GS70/100T300 family modules require an external 1 Amp fuse on the input side.
The output voltage is adjusted using an external voltage generator connected to the ADJ pin and the -SENSE pin.
