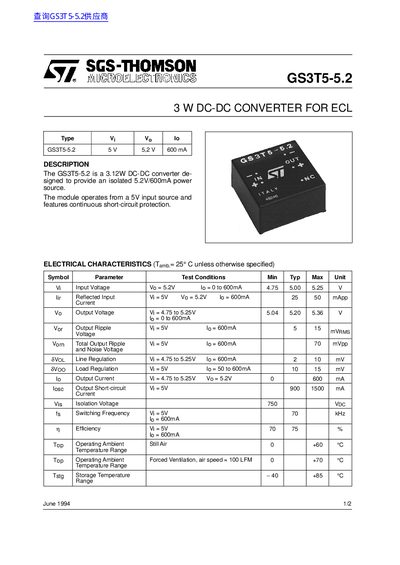

The GS3T5-5.2 is a 3.12W DC-DC converter designed by SGS-THOMSON Microelectronics to provide an isolated 5.2V/600mA power source. The module operates from a 5V input source and features continuous short-circuit protection.
The GS3T5-5.2 is a 3.12W DC-DC converter designed to provide an isolated 5.2V/600mA power source. It operates from a 5V input and includes continuous short-circuit protection. Electrical characteristics include input voltage range 4.75–5.25V, output voltage 5.04–5.36V, and efficiency of 70–75% at 70kHz switching frequency.
The datasheet includes connection diagrams, mechanical dimensions, and environmental operating ranges from 0 to +60°C (still air) and 0 to +70°C (forced ventilation). It also notes storage temperature range from -40 to +85°C and includes standard disclaimers regarding patent and usage rights.
| Input Voltage | 4.75 to 5.25V |
|---|---|
| Output Voltage | 5.04 to 5.36V |
| Efficiency | 70 to 75% |
| Switching Frequency | 70kHz |
| Isolation Voltage | 750 Vpc |
| Operating Temperature (Still Air) | 0 to +60°C |
| Operating Temperature (Forced Ventilation) | 0 to +70°C |
| Storage Temperature | -40 to +85°C |
The output voltage is 5.04 to 5.36V.
The efficiency is 70 to 75%.
The switching frequency is 70kHz.
