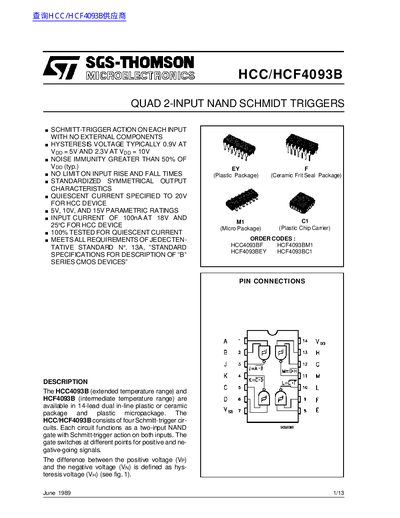

HCC/HCF4093B Quad 2-input NAND Schmitt Triggers
This datasheet details the HCC/HCF4093B quad 2-input NAND Schmitt trigger ICs from SGS-THOMSON. It includes static and dynamic electrical characteristics, absolute maximum ratings, recommended operating conditions, and application circuits. The device is available in 14-lead dual in-line plastic or ceramic package and plastic micropackage. It features Schmitt-trigger action on both inputs and is designed for use in wave shapers, monostable multivibrators, and astable multivibrators.
| Supply Voltage | HCC Types: 0.5 to +20V; HCF Types: 0.5 to +18V |
|---|---|
| Hysteresis Voltage | Typically 0.9V at Vop = 5V and 2.3V at Vpp = 10V |
| Operating Temperature | HCC Types: -55 to +125°C; HCF Types: -40 to +85°C |
| Quiescent Current | HCC Types: 0.02mA at 5V, 0.02mA at 10V, 0.02mA at 15V, 0.04mA at 20V |
| Propagation Delay Time | 5V: 190ns; 10V: 90ns; 15V: 65ns |
The hysteresis voltage is typically 0.9V at Vop = 5V and 2.3V at Vpp = 10V.
HCC types operate from -55°C to +125°C, and HCF types operate from -40°C to +85°C.
The quiescent current is 0.02mA at 5V for the HCC type.
The propagation delay time is 190ns at 5V.
