M54HC7240/7241/7244 M74HC7240/7241/7244 are high performance CMOS eight-way buffers with strong output drive capability, high noise immunity, symmetric output current, symmetric delays, wide operating voltage range and other features.

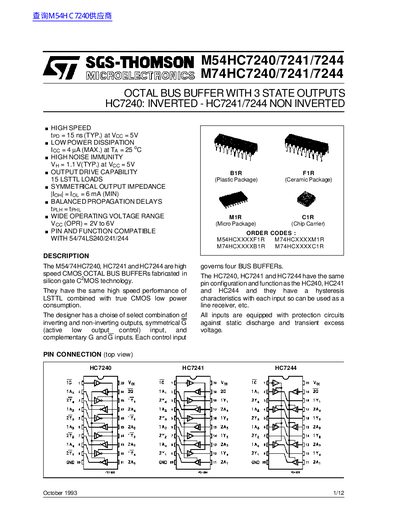

This document is a datasheet for the SGS-THOMSON M54HC7240, M54HC7241, and M54HC7244 series of high-speed CMOS octal bus buffers. These devices feature silicon gate C2MOS technology, combining the high speed of LSTTL with low power consumption. They are available in inverted (HC7240) and non-inverted (HC7241/7244) output configurations and are pin and function compatible with 54/74LS240/241/244 series devices.
| Propagation Delay (Typical) | 15 ns |
|---|---|
| Low Power Dissipation (Max) | 4 mW |
| Noise Immunity (Typical) | 1.1 V |
| Output Drive Capability | 15 LSTTL Loads |
| Output Impedance (Min) | 6 mA |
| Operating Voltage Range | 2V to 6V |
| Supply Voltage (Max) | +7 V |
| Operating Temperature (MS54HC Series) | -55 to +125 °C |
The HC7240 has inverted outputs, while the HC7241 and HC7244 have non-inverted outputs.
Yes, they are pin and function compatible with 54/74LS240/241/244.
The absolute maximum supply voltage is +7 V.
