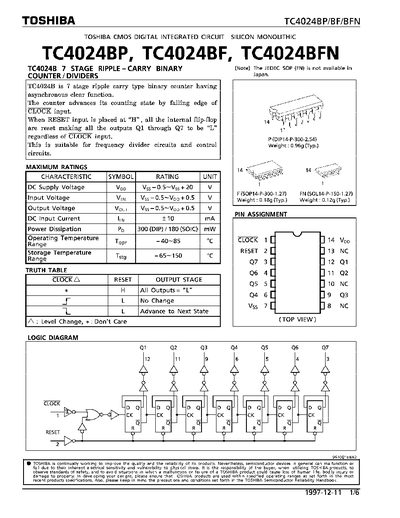

The document describes the TC4024BP, TC4024BF, and TC4024BFN as 7-stage ripple-carry type binary counters with an asynchronous clear function. These devices advance their counting state on the falling edge of the CLOCK input and are suitable for frequency divider and control circuits.
| Supply Voltage (VDD) | 3 to 18 V |
|---|
When RESET is placed at 'H', all internal flip-flops are reset, making outputs Q1 through Q7 low regardless of the CLOCK input.
The counter advances its counting state on the falling edge of the CLOCK input.
