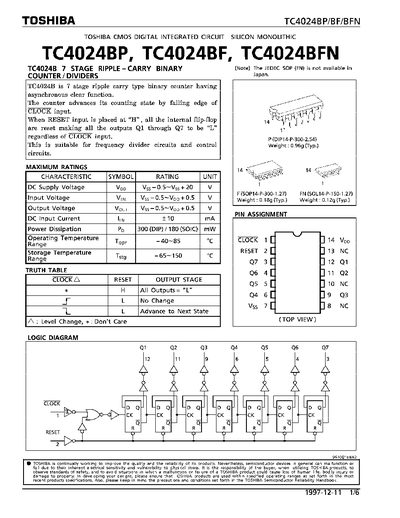

This document describes the Toshiba TC4024BP, TC4024BF, and TC4024BFN integrated circuits. The device is a 7-stage ripple-carry type binary counter featuring an asynchronous clear function that resets all internal flip-flops when the RESET input is high. It is designed for use in frequency divider circuits and control applications.
| Product Type | 7 stage ripple carry type binary counter |
|---|---|
| Functionality | Asynchronous clear function |
| Clock Triggering Edge | Falling edge of CLOCK input |
| Reset Condition | RESET input at H level |
| Power Dissipation (DIP) | 300 mW |
The maximum DC supply voltage rating is +20 V.
