Vishay Siliconix Si7909DN is a dual P-channel 12-V (D-S) MOSFET with 1.8-V rating, new low thermal resistance PowerPAK® package, advanced high cell density process, ultra-low rDS(on), and high PD capability. It is suitable for load switch, PA switch, battery switch, and bi-directional switch.

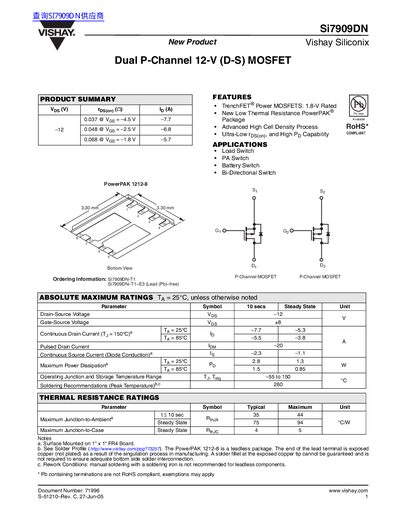

The document is a product summary and datasheet for the Vishay Siliconix Si7909DN, which features two P-Channel MOSFETs in a single PowerPAK 1212-8 leadless package. The device is designed with TrenchFET technology to offer low on-resistance and high power capability.
| Drain-Source Voltage | -12 V |
|---|---|
| Pulsed Drain Current | -20 A |
| Operating Junction Temperature Range | -55 to 150 °C |
The device operates within a junction and storage temperature range of -55 to 150 °C.
The maximum power dissipation is rated at 7 W under specified conditions.
