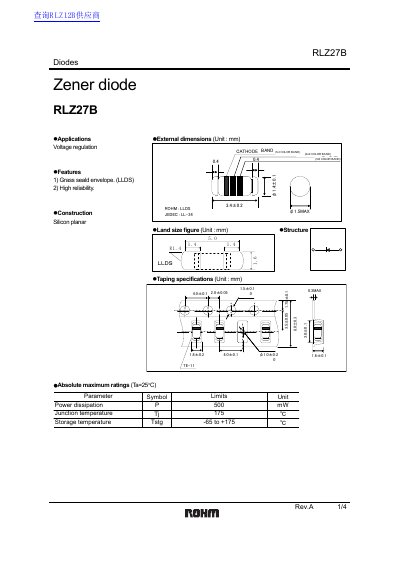

ROHM RLZ27B Zener Diode Datasheet

RLZ27B is a zener diode from ROHM. It features an LLDS package and high reliability.

Brand: ROHM
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 173 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: 1FC344D013FA2F01E34DF5DE606895AB
PDF: ROHM RLZ27B Zener Diode Datasheet PDF

About this manual

The document describes the ROHM RLZ27B, a Zener diode designed for voltage regulation applications. It features a Grass-seal envelope (LLDS) construction for high reliability and utilizes a silicon planar structure. The datasheet includes detailed electrical characteristics such as Zener voltage, operating resistance, and reverse current across various temperatures.

What's inside

External dimensions
Features
Absolute maximum ratings
Electrical characteristics
Zener voltage characteristics
Reverse current characteristics
Capacitance characteristics
Thermal impedance
Application notes
Export control

Specifications

Package Type	LLDS
Construction	Silicon planar
Zener Voltage (Typical)	26.26 V

Frequently asked questions

What is the package type for the RLZ27B?

The RLZ27B uses the LLDS package, which corresponds to JEDEC LL-34.

What is the typical Zener voltage of the RLZ27B?

The typical Zener voltage is 26.26 V.
