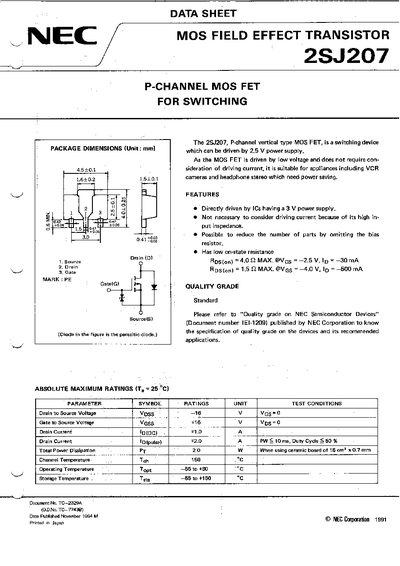

NEC 2SJ207 P-Channel MOS FET Datasheet

About this manual

This document is a technical datasheet for the NEC 2SJ207, a P-channel vertical type MOS field effect transistor (MOS FET) intended for switching operations. The device is specifically designed to be driven by power supplies as low as 2.5 V and features high input impedance, making it suitable for applications like VCRs, cameras, and headphone stereos where power saving is required.

What's inside

• Features
• Absolute Maximum Ratings
• Electrical Characteristics
• Switching Time Measurement Circuit
• Typical Characteristics
• Recommended Soldering Conditions

Specifications

Frequently asked questions

What is the minimum power supply voltage required to drive this device?

The 2SJ207 can be driven by a 2.5 V power supply.

Is a bias resistor required for this MOS FET?

No, it is possible to reduce the number of parts by omitting the bias resistor.
