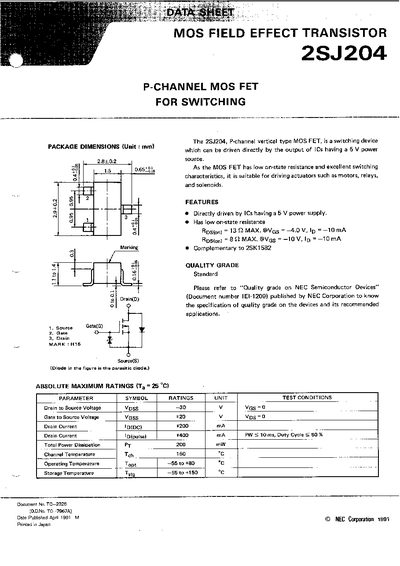

This document provides technical specifications for the NEC 2SJ204, a P-channel vertical type MOS field effect transistor designed for switching applications. It is suitable for driving actuators such as motors, relays, and solenoids directly from ICs with a 5 V power supply due to its low on-state resistance.
The datasheet includes absolute maximum ratings, electrical characteristics at 25 °C, typical characteristic curves, recommended soldering conditions for surface mount types, and application guidelines. It also outlines quality grades (Standard and Special) and usage restrictions regarding high-reliability environments.
| Drain to Source Voltage (Vdss) | -30 V |
|---|---|
| Gate to Source Voltage (Vgss) | +20 V |
| Drain Current (Continuous) | -200 mA |
| Total Power Dissipation | 200 mW |
| Operating Temperature Range | -55 to +80 °C |
It is a switching device suitable for driving actuators such as motors, relays, and solenoids.
Yes, it can be driven directly by the output of ICs having a 5 V power supply.
For infrared reflow, the peak temperature should be 230 °C with a time within 30 seconds above 210 °C.
