This document is an instruction manual for the Turbo-V 300HT PCB controller, providing information on the controller's specifications, outline, interconnections, and optional serial port.

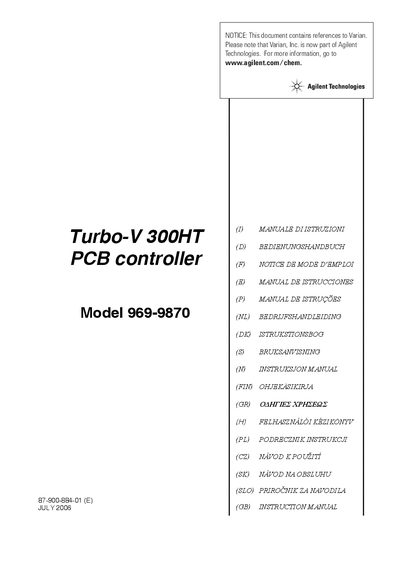

This document is an instruction manual for the Agilent Technologies Model 969-9870 Turbo-V 300HT PCB Controller. It serves as a guide for users to safely install, operate, and maintain this frequency converter used with Turbo-V 300HT vacuum pumps. The controller incorporates solid-state components and features self-diagnosis and self-protection capabilities.
It is a frequency converter controlled by a microprocessor that incorporates circuitry for the automatic operation of Turbo-V 300HT pump series.
The storage temperature must be between -20 °C and +70°C with relative humidity of 0 to 95% (non-condensing).
No, the controller must be powered by an external transformer that is not supplied with the unit.
