This document is the user manual for Agilent Technologies' TV 301SF Navigator pump, which mainly introduces the pump's features and characteristics as well as the usage methods

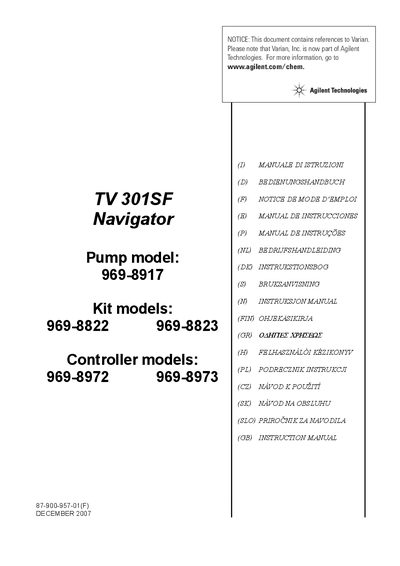

The document is a user manual for the Agilent TV 301SF Navigator, an integrated vacuum pumping system consisting of a turbomolecular pump (model 969-8917) and compatible controllers. The text notes that while the product was originally manufactured by Varian Vacuum Technologies, it is now part of Agilent Technologies.
The manual covers safety warnings regarding high-speed rotors, installation procedures for various cooling kits (air or water), vibration isolators, and purge valves. It also details electrical connections, serial communication protocols (RS232/RS485), and storage conditions to ensure proper functionality.
| Maximum Rotational Speed | 56000 rpm max |
|---|---|
| Storage Temperature Range | -20 °C to 70°C |
| Relative Humidity Limit | 0 to 95% (non-condensing) |
The system is not suitable for pumping liquids or solid particles.
