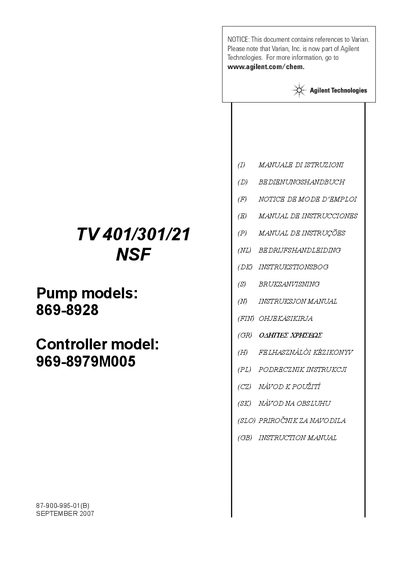

Agilent Technologies Turbo-V 401-301-21 NSF 969-8979M005 Manual

About this manual

The document is a user guide for the Agilent Technologies (formerly Varian) TV 401/301/21 NSF integrated vacuum pumping system. It includes safety warnings, installation procedures for the pump and controller, and specific instructions for integration with SCIEX Caribou and Meteor systems.

Key sections cover technical specifications, interconnection details including RS232/RS485 communication protocols, water cooling kit installation, purge valve setup, and serial cable connections. The manual also addresses special operating conditions such as the use of corrosive gases and presence in magnetic fields.

What's inside

• Indicazioni di Sicurezza
• Preparazione per l'installazione
• Installazione del Controller TV 401/301/21 NSF
• Connessione della pompa fore-vacuum
• Procedura di inserimento ed estrazione in sistemi SCIEX
• Kit di raffreddamento ad acqua
• Valvola di purga
• Cavo seriale
• Specifiche tecniche
• Accessori e ricambi

Specifications

Frequently asked questions

Is the TV 401/301/21 NSF suitable for pumping liquids?

No, it is not suitable for pumping liquids or solid particles.

What are the storage temperature limits?

The pump must be stored between -20 °C and 70 °C.

What is the maximum storage time for the pump?

The storage time limit is 10 months from the shipping date.
