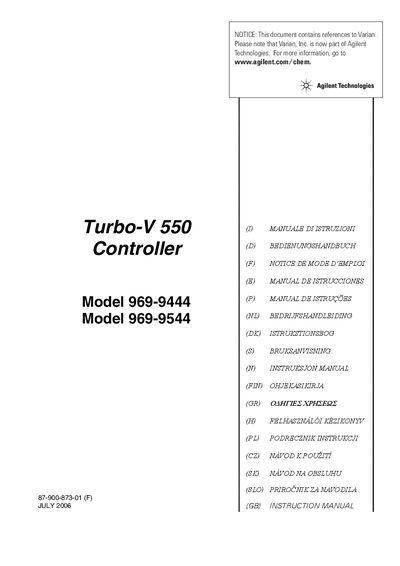

Agilent Turbo-V 550 Controller Model 969-9444/969-9544 Instruction Manual

About this manual

The document is an instruction manual for the Agilent Technologies (formerly Varian) Turbo-V 550 Controller, specifically models 969-9444 and 969-9544. It serves as a guide for users to operate, install, and maintain these frequency converters used with Turbo-V 550 vacuum pumps.

The manual covers general safety warnings, storage conditions, installation preparation including voltage selection changes, and detailed operational procedures such as starting the pump, remote control modes via RS-232/485 serial ports, and handling power failures. It also includes sections on accessories, spare parts, options, and maintenance requirements.

What's inside

• Turbo-V 550 Controller Description
• Controller Specifications
• Controller Outline
• Fuse Holder and Voltage Changer Assembly
• Interconnections (Logic Input/Output)
• Serial Port Installation
• Operating the Pump
• Remote Control Mode Operation
• Maintenance
• Accessories and Spare Parts

Specifications

Frequently asked questions

What are the storage temperature and humidity requirements for the controller?

The device must be stored at temperatures between -20 °C to +70°C with relative humidity from 0-95% (non-condensing).

Which models are covered in this manual?

This document covers Model 969-9444 and Model 969-9544.
