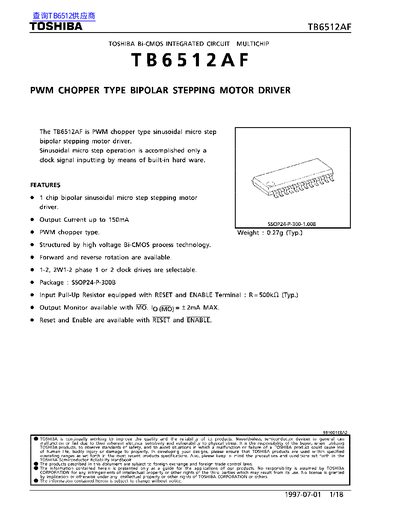

The document details the specifications and features of the TB6512AF, an integrated circuit designed as a PWM chopper type sinusoidal micro-step bipolar stepping motor driver. It utilizes high voltage Bi-CMOS process technology to provide output currents up to 150mA with selectable 1-2 or 2W1-2 phase excitation modes.
| Product Type | PWM chopper type sinusoidal micro step bipolar stepping motor driver |
|---|---|
| Output Current | up to 150mA |
| Process Technology | high voltage Bi-CMOS process technology |
| Package Type | SSOP24-P-300B |
| Weight | 0.27g (Typ.) |
The device supports an output current up to 150mA.
The typical weight is 0.27g.
